Product Description
FMS filter bags are engineered with a composite structure of fiberglass and P84 needle felt, combining strength with high-temperature and chemical resistance. Fiberglass ensures excellent dimensional stability and abrasion resistance, while P84 enhances filtration efficiency under harsh operating conditions. This optimized material blend delivers reliable dust capture, long service life, and consistent performance, making FMS filter bags a dependable solution for high-temperature industrial filtration applications.
Product Parameters
| Product Name | FMS Filter Media | FMS Membrane Filter Media | |
|---|---|---|---|
| Fiber | P84 + Glass Fiber | P84 + Glass Fiber | |
| Base Cloth | High-Strength Glass Fiber | High-Strength Glass Fiber | |
| Gram Weight (g/m²) | 850 | ||
| Continuous Operating Temp. (℃) | 280 | ||
| Instant Operating Temp. (℃) | 300 | ||
| Tensile Strength (N/5*20cm) | Warp | >1800 | |
| Weft | >1800 | ||
| Elongation at Break (%) | Warp | <10 | |
| Weft | <10 | ||
| Air Permeability (m³/m²·min) | 10~15 | 3~6 | |
| Air Velocity (m/min) | <1.0 | <0.8 | |
| Application Scenarios | High temperature & corrosion resistance, moderate wear resistance. Suitable for low filtration air velocity, small & medium cement kilns. | ||

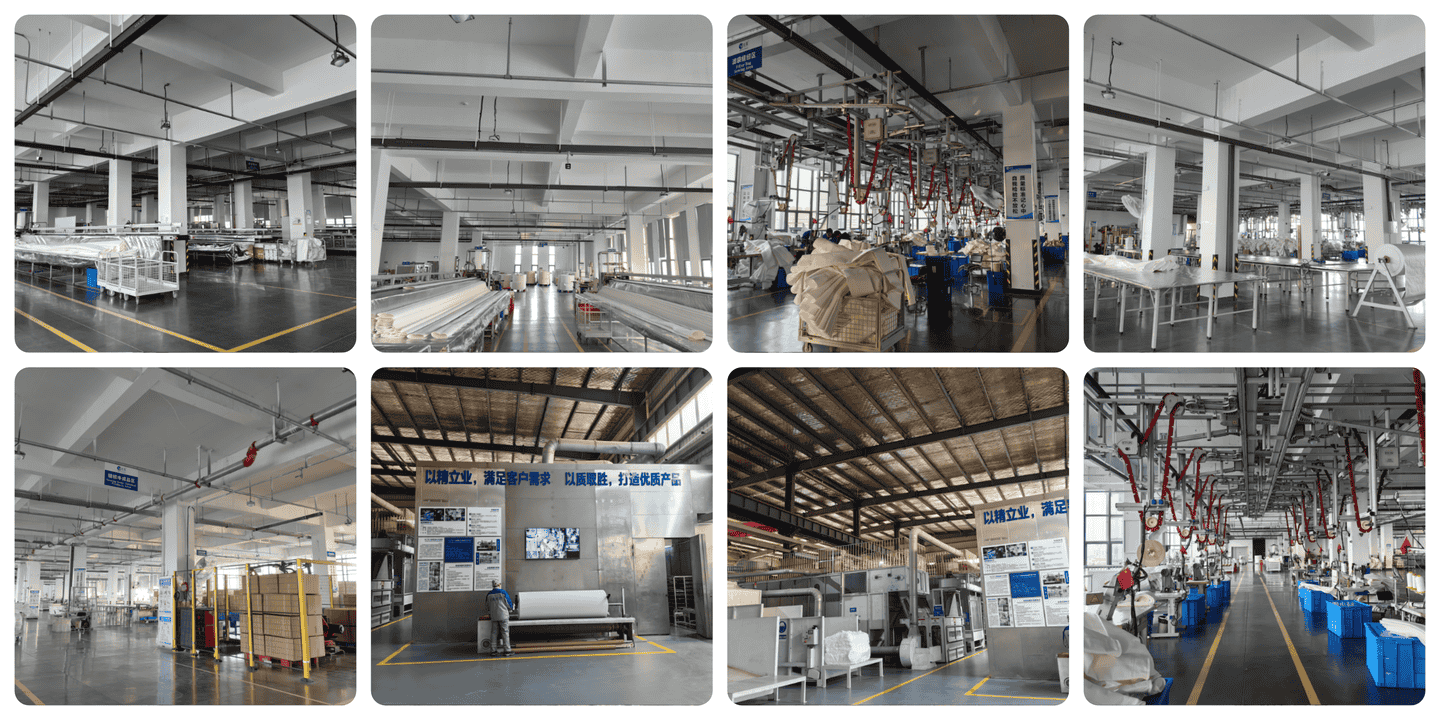

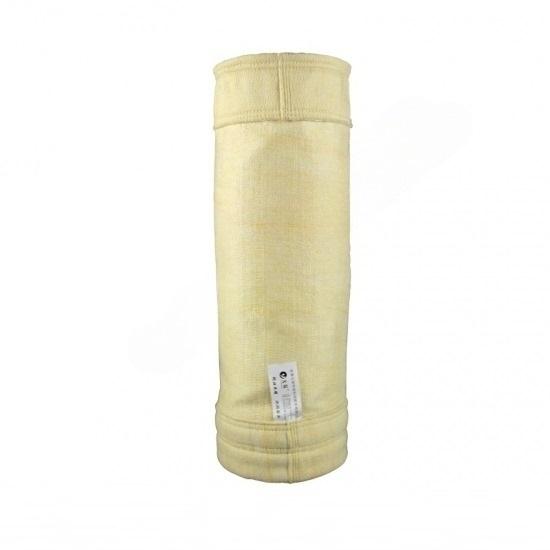

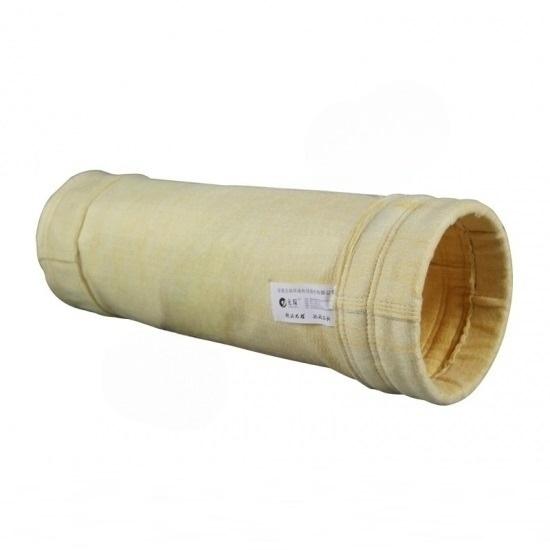

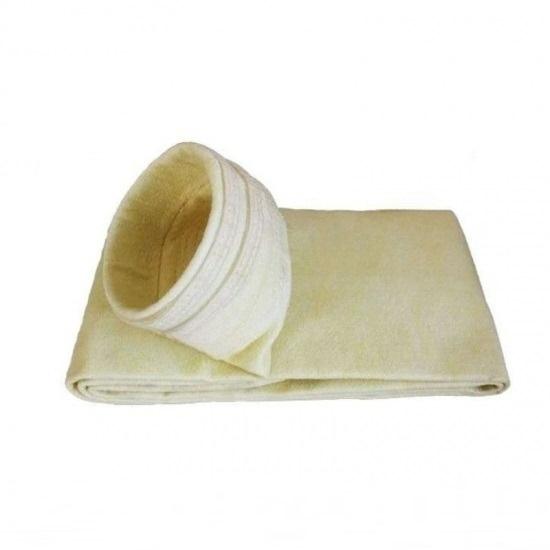

Detailed Photos
