Product IntroductionBag filters are in general frequently used for dust removal in industrial applications. We make filter bags to fit most styles and types of bag houses and other dust collection systems.
Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations.Medias are available in various fabric weights and treatments such as singed, glazed, PTFEmembrane, antistatic, acid resistant and more.
Features of our NOMEX/PTFE filter bags:
- Excellence in high temperature tolerance as high as 210 ºC
- Good resistance to alkalis and can also withstand most organic solvents very well
- Long-term resistance against highly abrasive dusty acr furnaces, high temperature dryers, casting furnaces and so on
- Various coatings are available
- High filtration effiency
- Factory manufacturer with good quality and price
Remarks:
- The length of dust filter bags: Can be customized.
- Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
- Process Method: Automatic drawing, cutting, sewing on automatic production line and manual processing.
- Prodction details:Double bottoms and reinforcement to make abrasion resistance.
Sewing thread: PTFE thread.
- Inspection: Filter bags will be according to the national standards, industry standards and enterprise standards.
- If your required filter bag is different from our usual one, then please send us your drawing picture and choose material you need, since we also produce the nonstandard filter bag.
- Professional designer teams to match with your operating condition.
Product Parameters
| Product Name | PPS/PPS Filter Media | PPS/PPS Membrane Filter Media | PPS/PTFE Filter Media | PPS/PTFE Membrane Filter Media | |
|---|---|---|---|---|---|
| Fiber | PPS | PPS | |||
| Base Cloth | PPS | PTFE | |||
| Gram Weight (g/m²) | 580 | 600 | |||
| Continuous Operating Temp. (℃) | 160 | 160 | |||
| Instant Operating Temp. (℃) | 190 | 190 | |||
| Tensile Strength (N/5*20cm) | Warp | ＞900 | ＞900 | ||
| Weft | ＞1200 | ＞1200 | |||
| Elongation at Break (%) | Warp | ＜30 | ＜30 | ||
| Weft | ＜50 | ＜50 | |||
| Air Permeability (m³/m²·min) | 10~15 | 2~5 | 10~15 | 2~5 | |
| Application Scenarios | Low sulfur coal, Temp ＜160℃, Low oxygen content | High emission precision requirements, Low sulfur coal, Temp ＜160℃, Low oxygen content | Medium sulfur coal, Temp ＜165℃ (High instant temp., High oxygen content) | Medium sulfur coal, Temp ＜165℃ (High instant temp., High oxygen content) | |

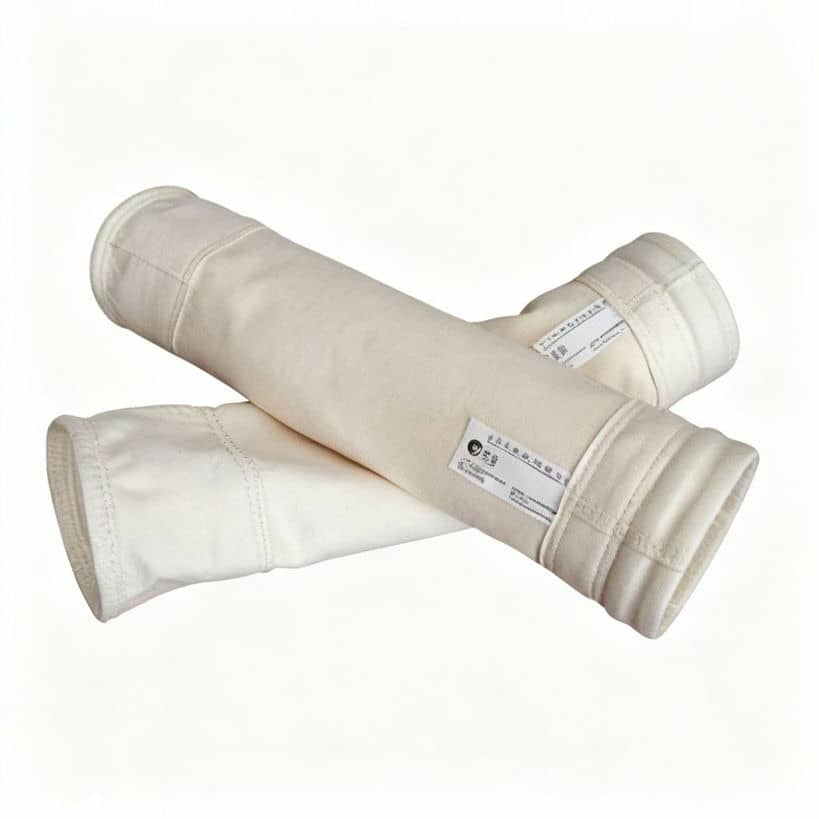

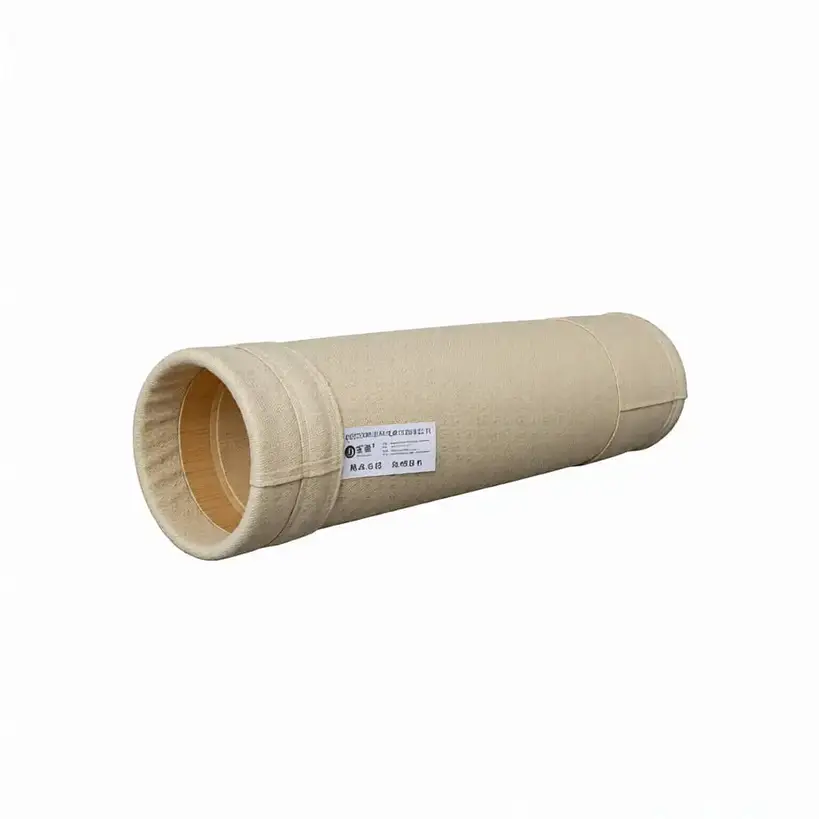

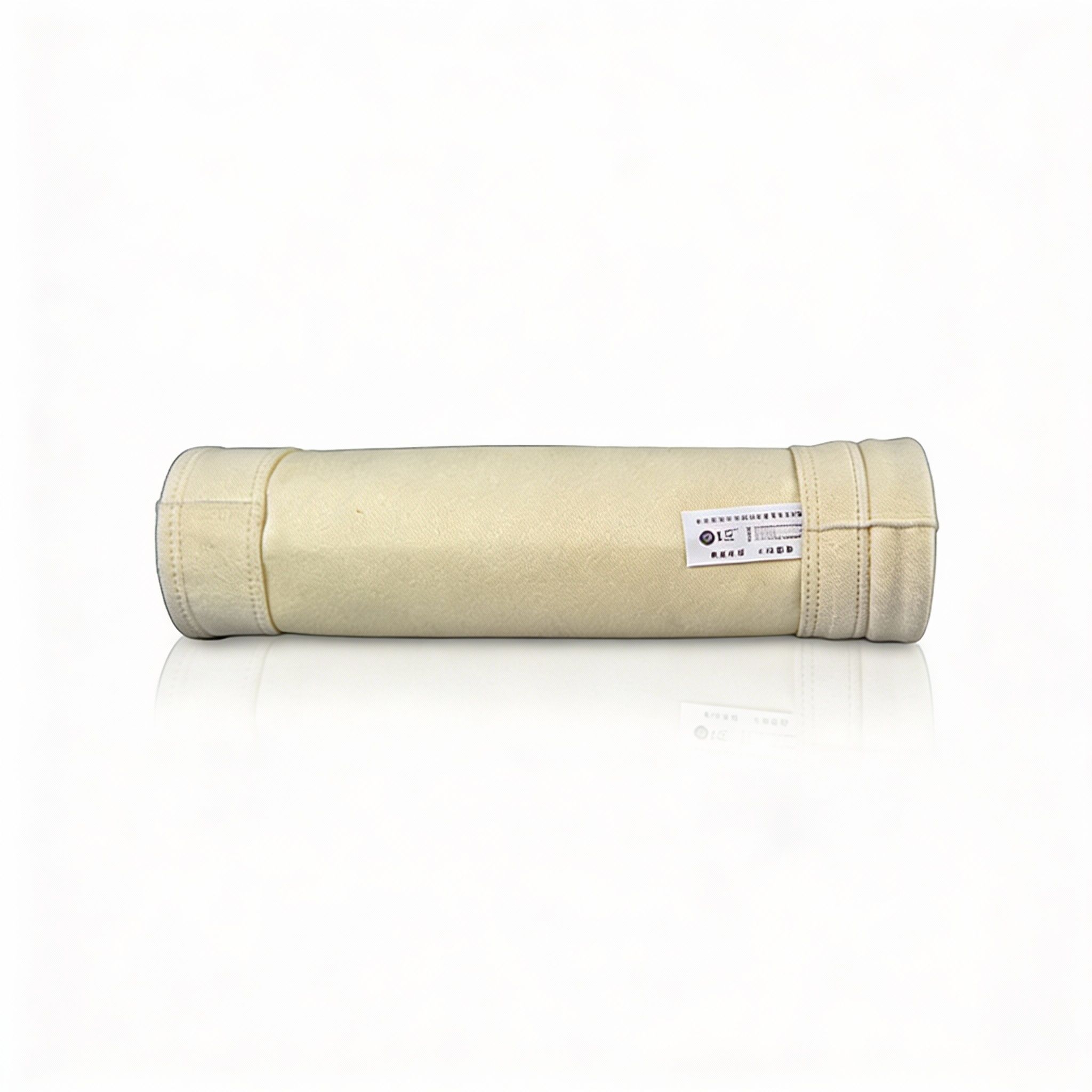

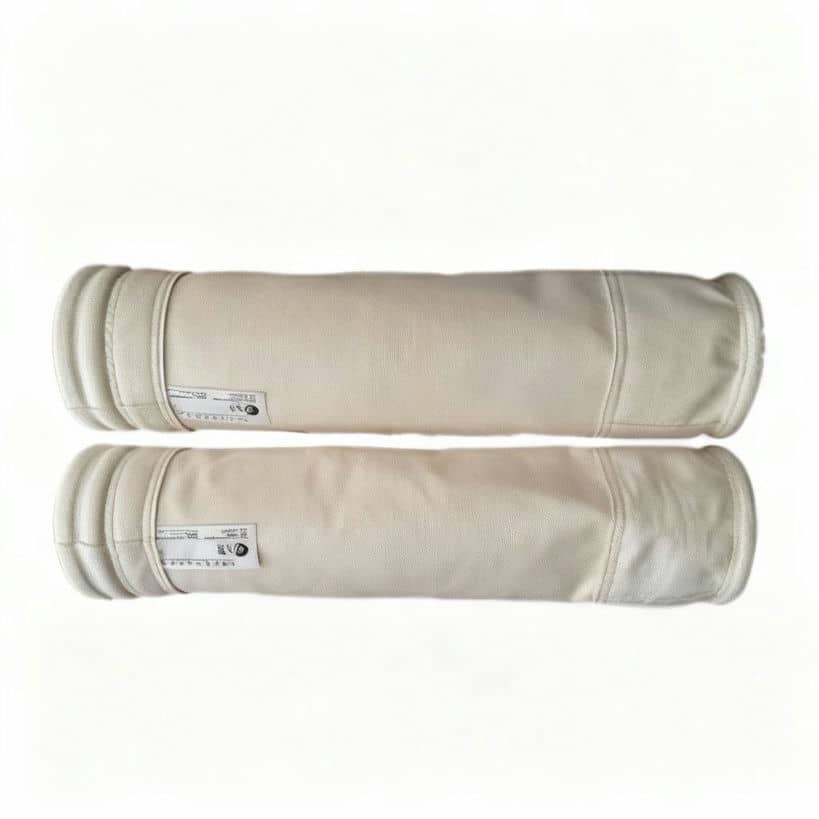

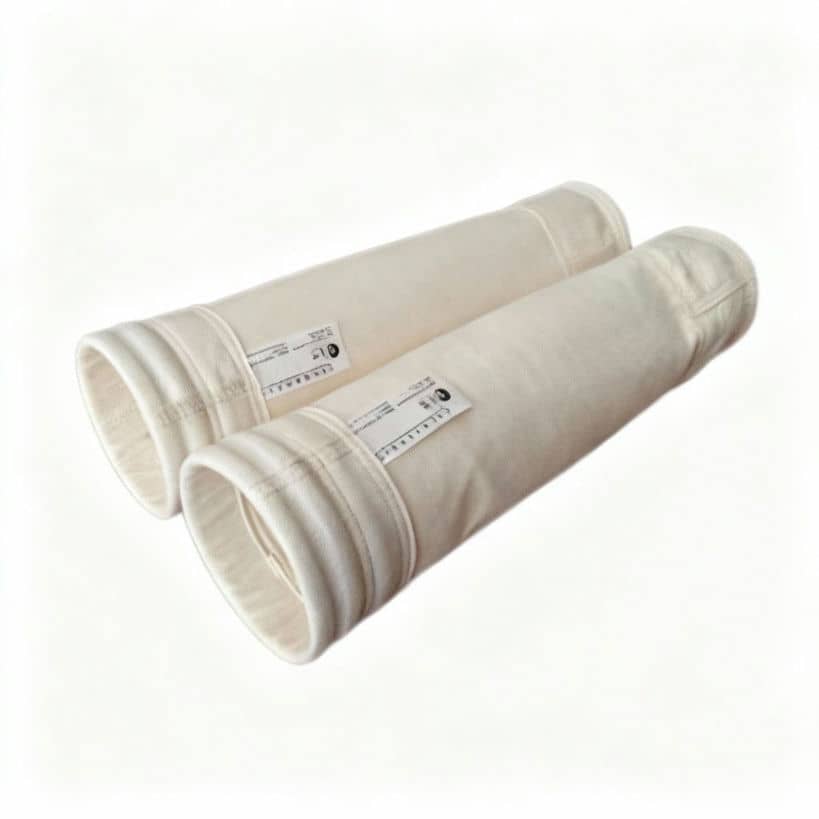

Detailed Photos
