Industrial Sewing Threads
Providing custom threads with extreme temperature endurance, aggressive chemical resistance, inherent flame retardancy, and high load capacity for critical global defense, manufacturing, and aerospace operations.
Product Portfolio Matrix
Engineered to excel across severe environments ranging from -196°C cryogenic storage up to 600°C extreme thermal exhaust.
HIGH TEMPERATURE
PTFE-Coated Fiberglass Thread
Uniformly covered with composite PTFE over high-grade fiberglass filaments. Resists up to 600°C spikes; excellent choice for removable insulation jackets.
HIGH STRENGTH
Aramid Specialty Thread
Inherent flame retardancy coupled with exceptional impact/tear resistance. Lightweight with high tensile modulus for defense and rugged protective gear.
ANTI-CORROSION
100% Pure PTFE Thread
Completely chemically inert to strong acids/alkalis. Features advanced nano-fluorobased pigment blending for outstanding durability in aggressive filtration environments.

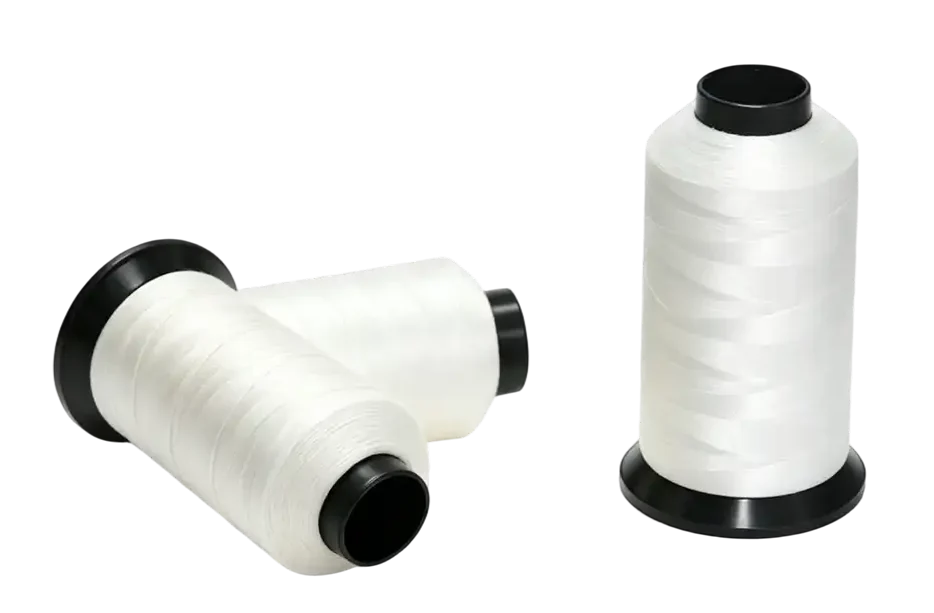

PTFE-Coated Fiberglass Sewing Thread
Continuous Filament E-Glass Yarn / Anti-Friction & Flexibility Modification
Transient 600°CContinuous 280°C
Inherent Flame Retardant
Chemical Inertness
Core Material Properties
- Thermal Shielding: Composed of high-purity silica/silicates. It is inherently non-combustible and does not support flame propagation.
- Friction & Flex Life Optimization: Uniformly coated with 10%–25% premium PTFE. Eliminates the traditional fragility of raw glass filaments, ensuring seamless high-speed machine stitching.
- Geometric Adaptability: Offers vastly superior flexibility and formability compared to stainless steel wire, allowing smooth assembly of complex, custom-shaped removable thermal covers.
Target Applications
- Removable insulation blankets, custom thermal jackets, and pipe wrapping.
- High-temperature protective garments, fire curtains, safety welding blankets, and fire hoses.
- High-temperature baghouse dust collectors and liquid/air industrial filters.
Technical Specifications Datasheet
| Yarn Base Type | Coating Type | Coating Content | Lubricant Content | Filament Diam. | Yarn Ply | Linear Density | Final Twist | Tensile Strength | Thread Diam. |
|---|---|---|---|---|---|---|---|---|---|
| Continuous E-Glass | High-Temp PTFE | 10% - 25% | 8% ± 2% | 5.5 μm | 12.5*1*3 | 232 ± 10% Tex | 280 Z | ≥ 105 N | 0.22 mm |
| Continuous E-Glass | High-Temp PTFE | 10% - 25% | 8% ± 2% | 4.0 μm | 33*2*2 | 165 ± 8% Tex | 380 Z | ≥ 77 N | 0.24 mm |
| Continuous E-Glass | High-Temp PTFE | 10% - 25% | 8% ± 2% | 4.0 μm | 33*2*3 | 223 ± 10% Tex | 280 Z | ≥ 95 N | 0.32 mm |
| Continuous E-Glass | High-Temp PTFE | 10% - 25% | 8% ± 2% | 4.0 μm | 33*2*4 | 300 ± 10% Tex | 380 Z | ≥ 116 N | 0.40 mm |

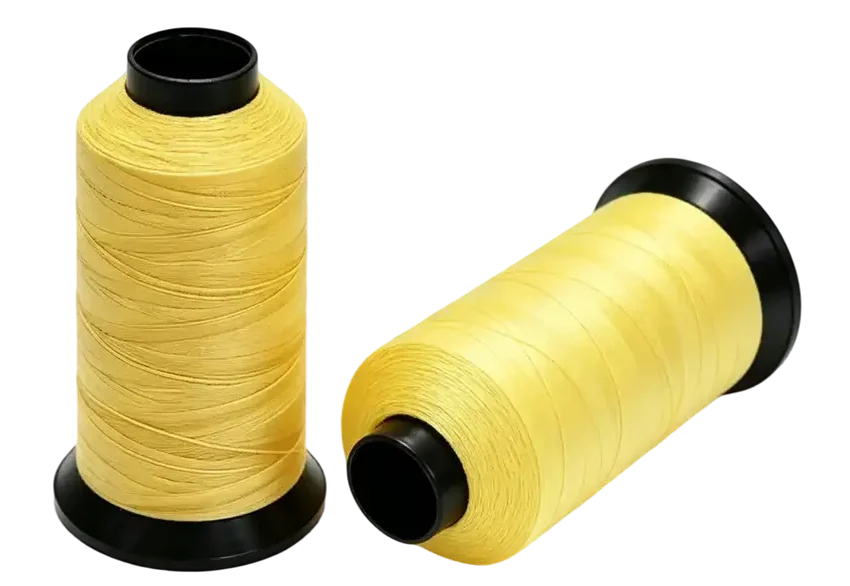

Aramid Specialty Thread
Inherent Flame Retardancy / Dynamic Burst & Shatter Resistance
LOI > 28
High Tensile Modulus
Permanent Anti-Static
Organic Solvent Resist
Core Material Properties
- Permanent Thermal Stability: Features a slightly negative axial thermal expansion coefficient, ensuring stitches remain tight, un-shrunk, and completely secure under prolonged flue gas exposure up to 200–260°C.
- Critical Life Protection: Will not melt or yield hazardous molten droplets during thermal failure. Does not emit toxic off-gases. Carbonized surface thickens under flame to maximize structural seam integrity.
- Impact Resistance: Highly rugged structural integrity with high modulus and low elongation at break. Prevents catastrophic failures under sudden high-velocity impact loads.
Target Applications
- Firefighter turnout gear, electric arc flash suits, welding gear, and metallurgical workwear.
- Ballistic vests, hard tactical helmet linings, and high-velocity fragmentation shields.
- Cement plant and steel mill baghouse filtration, flight suits, and parachute cord structural reinforcements.
Technical Specifications Datasheet
| Testing Parameter | Standard Performance Result |
|---|---|
| Weight Deviation per 100m | 1.8% |
| CV of Weight Deviation per 100m | 2.0% |
| Single Filament Breaking Strength | 2525.2 cN |
| Single Filament Tensile Tenacity | 28.5 cN/Tex |
| CV of Single Filament Breaking Strength | 4.69% |
| Single Strand Elongation at Break | 135.6 mm |
| Ultimate Elongation Rate | 27.12 mm |
| Actual Twist Level | 56.4 twists / 10cm |
| Yield Output per 1kg Weight | Approx. 11,850 meters |
| Net Weight per Cone Range | 1.110 ～ 1.120 kg |

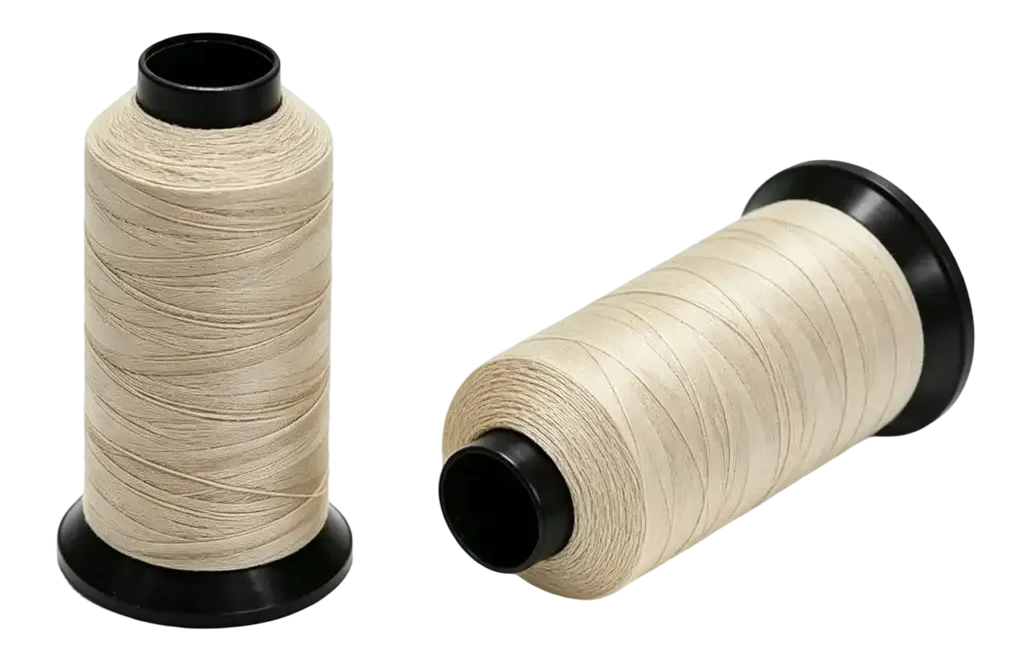

Industrial-Grade High-Tenacity Polyester (PET) Thread
All-Weather Versatile Seaming / Mechanical Friction Resistance
Cost Efficient
Superior UV Resistance
Hydrophobic / Waterproof
Color Fastness
Core Material Properties
- High-Speed Industrial Optimization: Engineered with excellent tensile strength and low surface friction coefficients. Eliminates thread breakage under high-frequency contact heating on high-speed automated sewing machines.
- Environmental Weatherability: Outstanding defense against UV breakdown. Retains elasticity and load-bearing properties over long periods of severe sunlight, high ambient moisture, and mildew risks.
- Chemical & Aesthetic Consistency: Shows notable immunity to common industrial solvents and bleaching. Color fastness remains constant over prolonged product life cycles.
Target Applications
- Ambient temperature dust filters, heavy-duty logistics tarpaulins, and cargo tie-down sleeves.
- Automotive interiors, outdoor sporting tents, FIBC bulk bags, and general high-stress structural textiles.
Technical Specifications Datasheet
| No. | Evaluated Parameter | Standard Testing Value | Testing Conditions & Remarks |
|---|---|---|---|
| 1 | Yarn Structural Construction | 20/3 ply | Standard Room Temperature |
| 2 | Absolute Breaking Strength | 3600 cN | Ambient Temperature (Winter ≤ 16°C) |
| 3 | Absolute Elongation at Break | 70 mm | Standard Room Temperature |
| 4 | Material Tenacity | 125 cN/Tex | Standard Room Temperature |
| 5 | Elongation Rate | 14% | Standard Room Temperature |
| 6 | Net Weight per Cone | 250 g | Standard Industrial Spool |
| 7 | Continuous Length per Cone | 2350 meters | Knotless Winding Standard |
